Basic U-turn Activation License

Basic U-turn operation steps are as follows

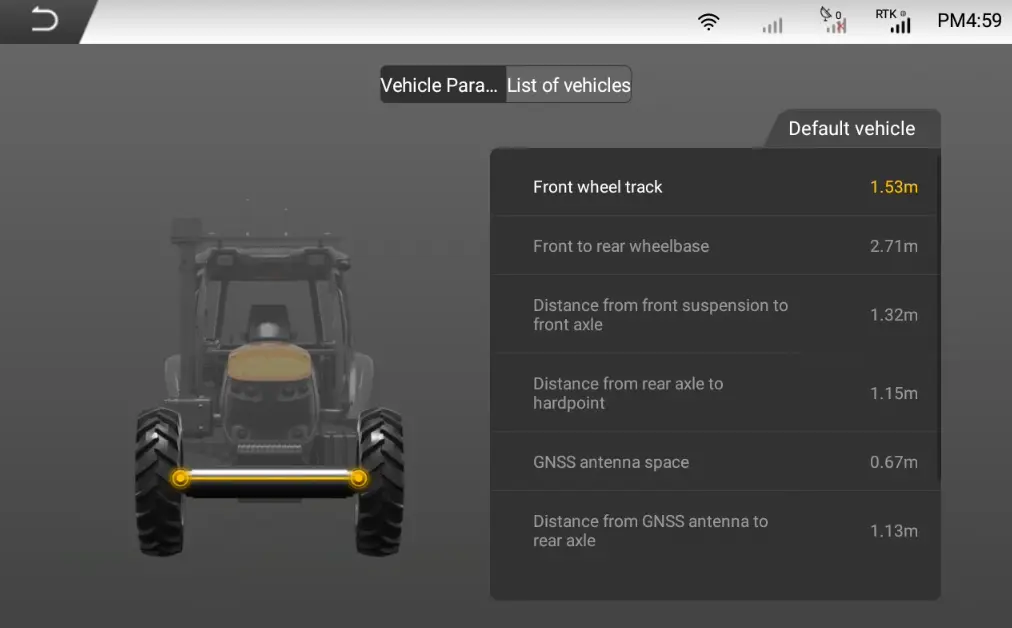

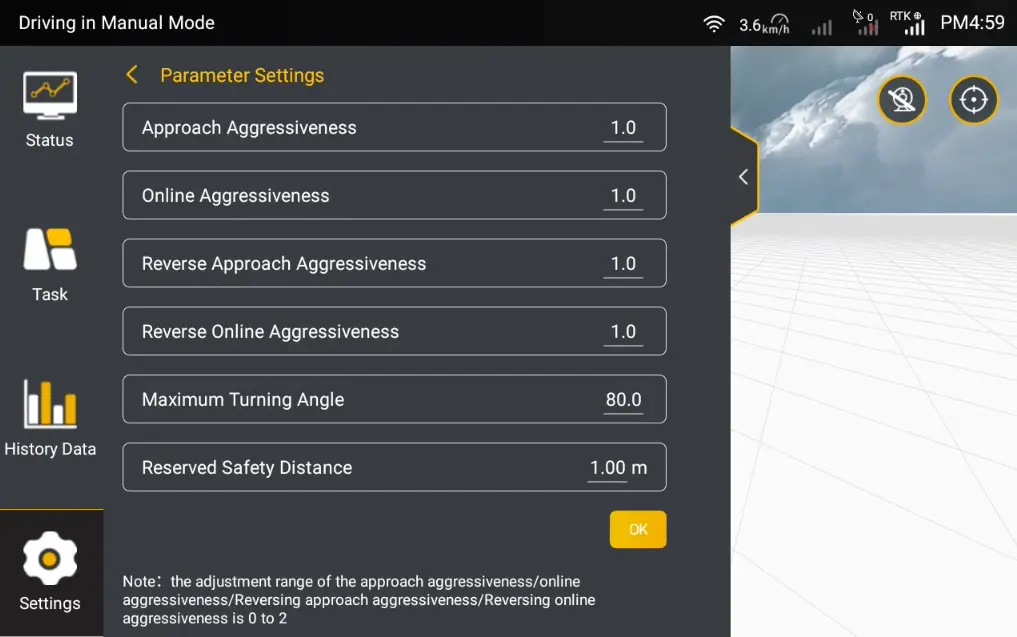

vehicle parameters

implement parameters

Step 1: Enter the setting, fill in the vehicle parameters and implement parameters.

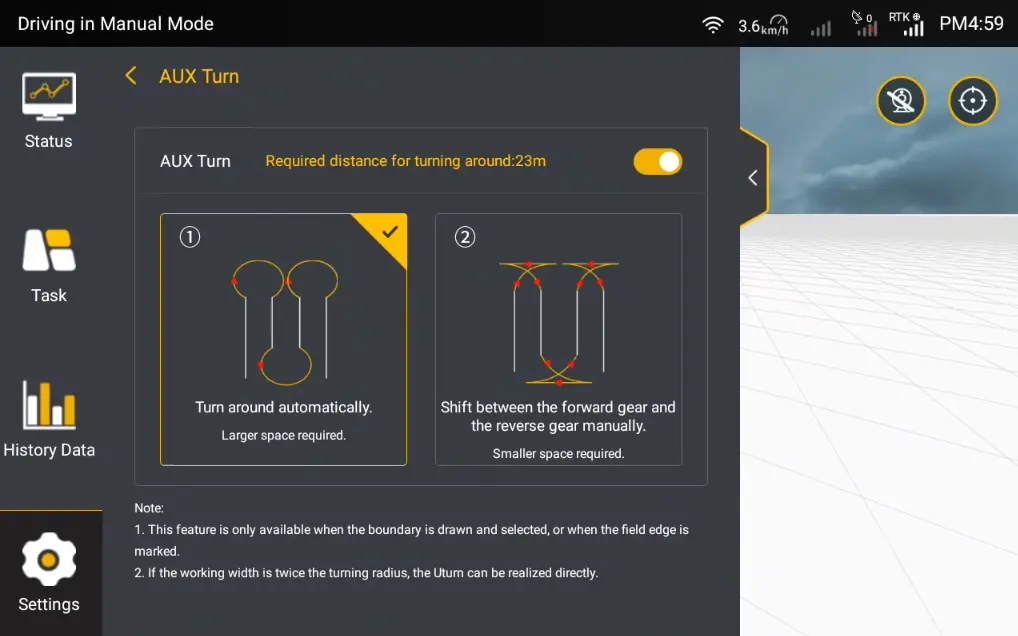

Select U-turn Methods

Select the path to turn around

Step 2: Click Settings - Advanced Functions, open the Basic U-turn and select the corresponding way to turn around.
Step 3: Import a boundary, or click "Mark point ①" and "Mark point ②" after starting the operation to set two field edges.

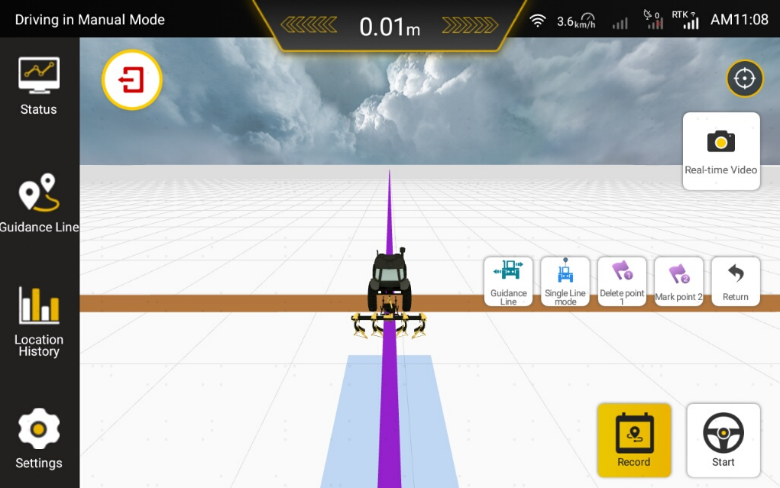

set field edge

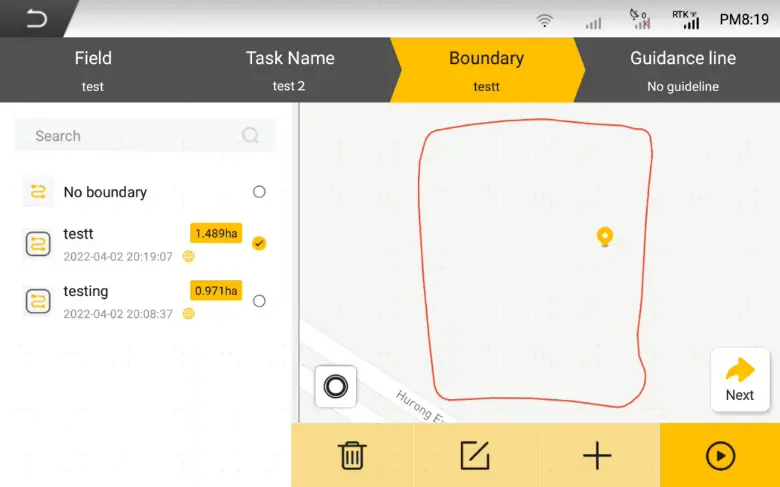

Import boundary
Step 4: In the driving in autosteering mode, click "←" or "→" on the guidance line requiring Basic U-turn, and the vehicle will turn around automatically after reaching the turnaround position.

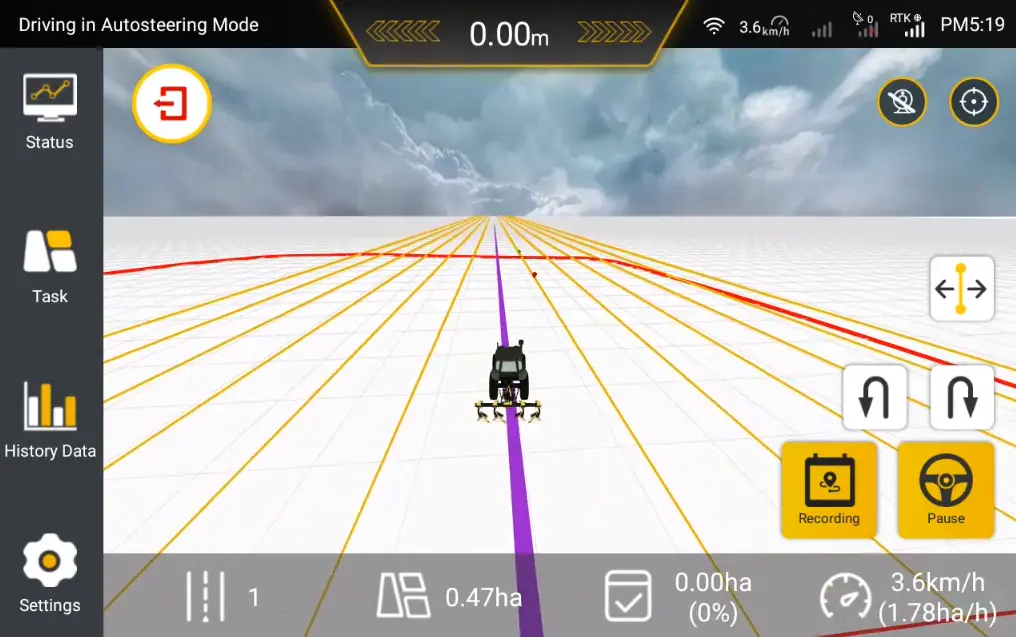

Click the arrow to plan a turnaround

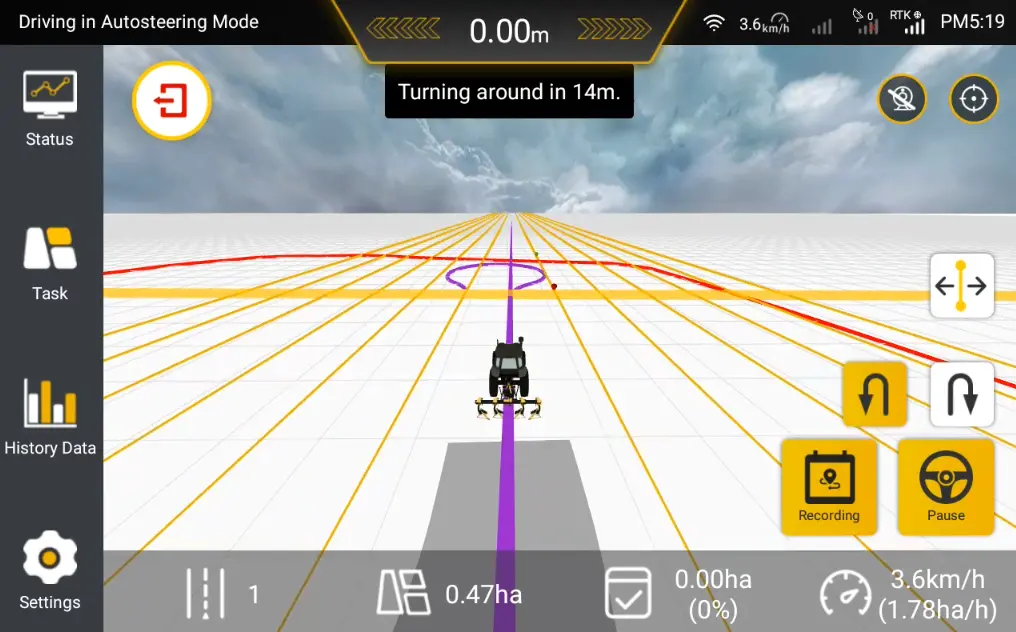

Turn prompt

Step 5: After clicking Basic U-turn, the distance from the start of the turn will be displayed at the top of the screen. Please reduce the speed when you are about to turn.
Step 6:
If the path ① is selected, the navigation will control the vehicle to turn around at the planned turning position. The user only needs to slow down and wait for the turn to complete.
If the path ② is selected, please manually switch the forward and reverse gears according to the screen prompts, and slow down until the turn is completed.

The path①

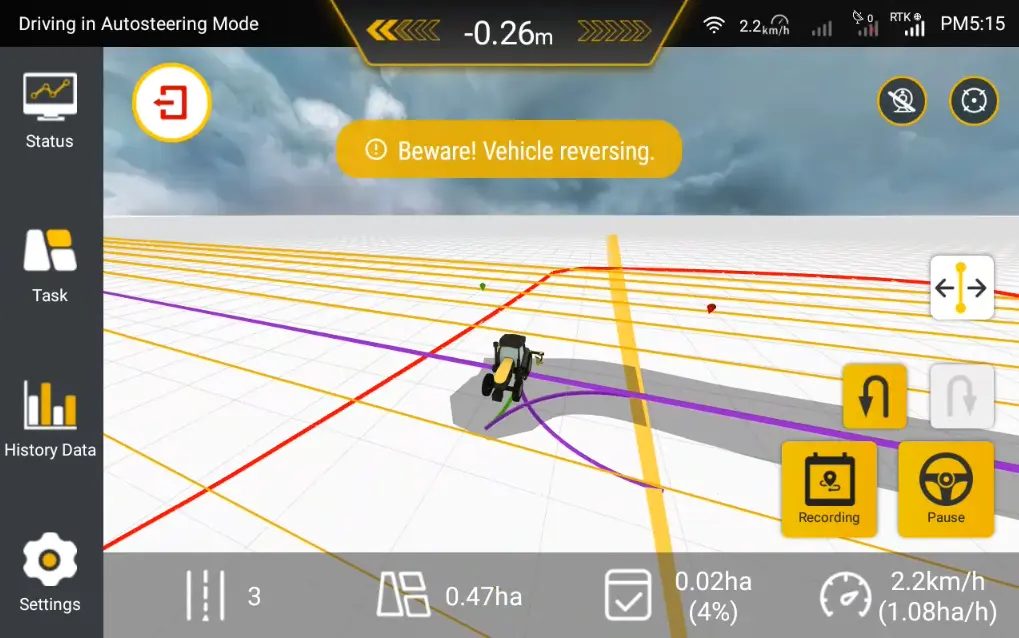

The shift prompt in the path②
