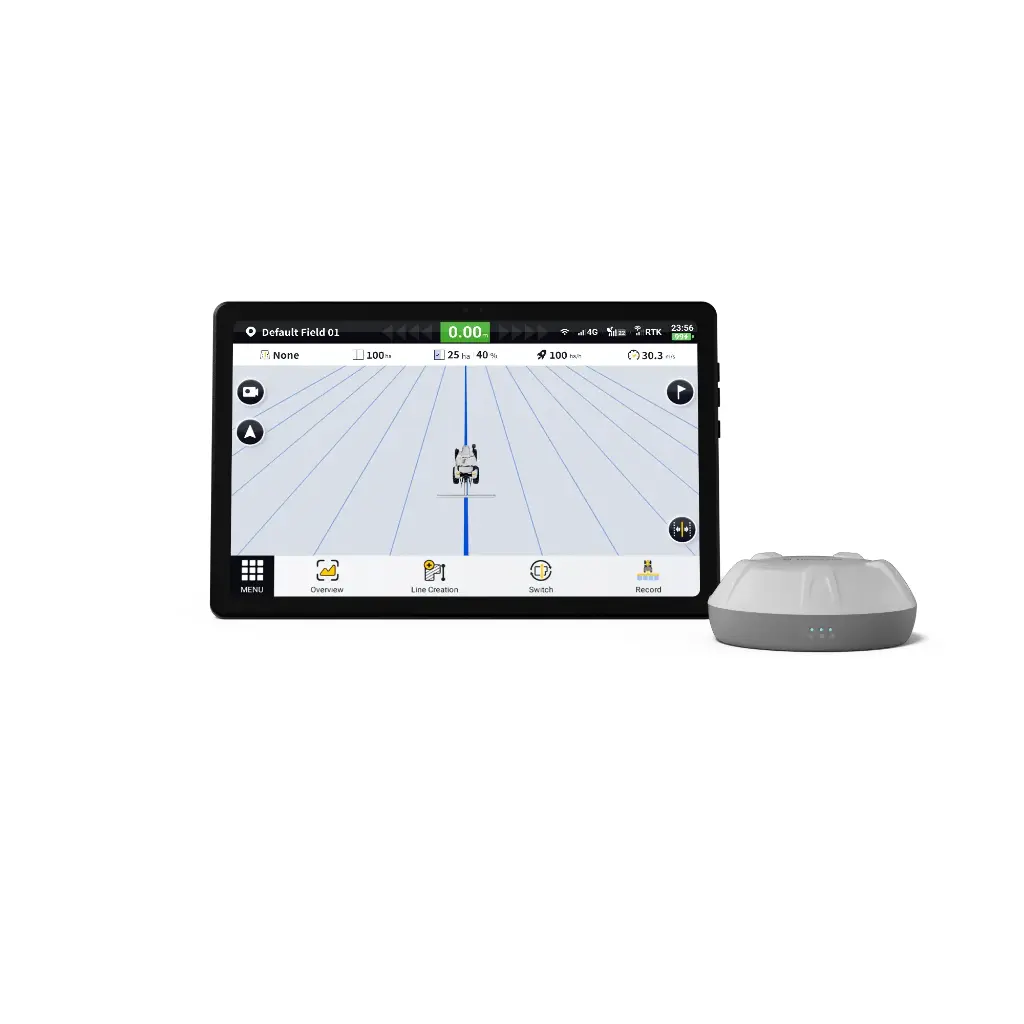

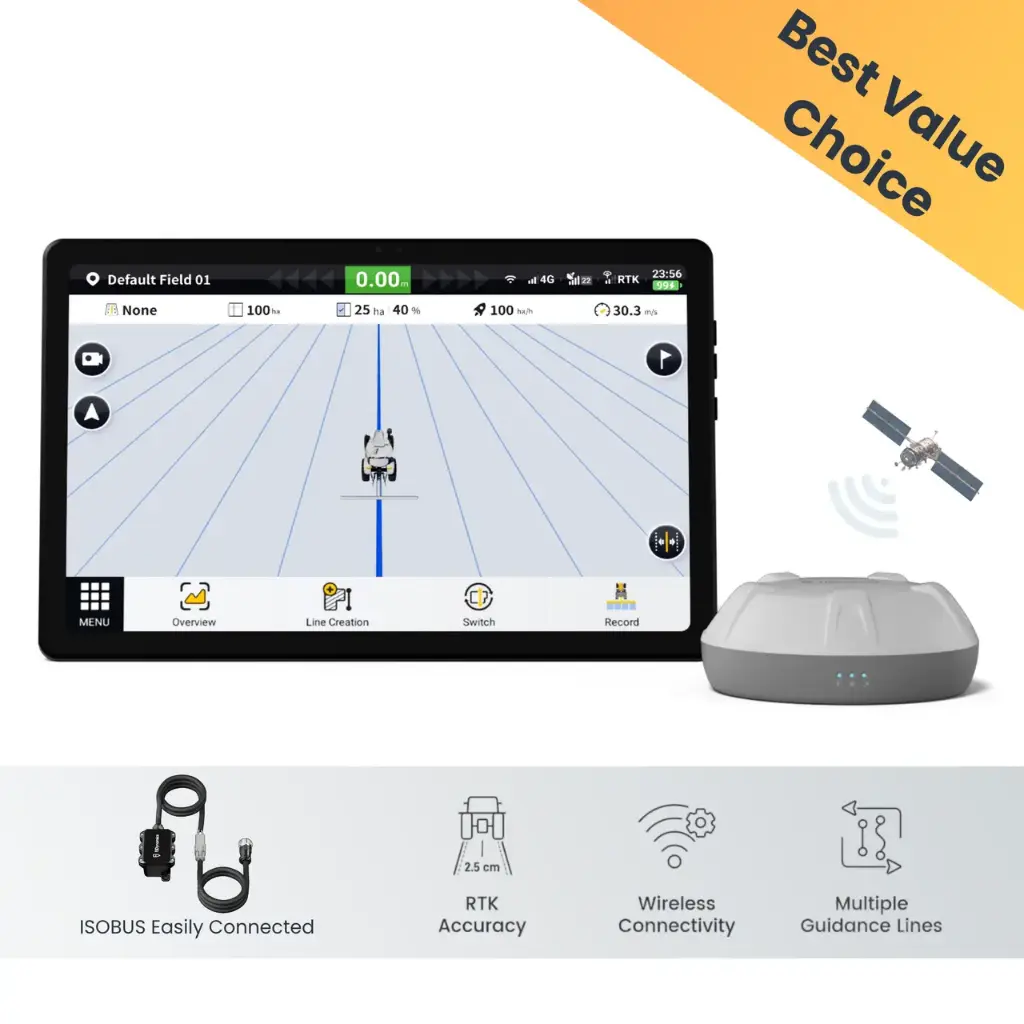

FJD AG1 Guidance System
Designed for beginners in precision agriculture, the AG1 Standard supports wireless connection with GNSS receiver and display via Wi-Fi, helping you quickly start your smart farming journey with confidence and ease.
Multiple Accuracy Solutions: AG1 offers flexible positioning from decimeter to centimeter accuracy, ensuring precision even in challenging environments.
Extensive Functions: Supports diverse guidance lines or complex paths for optimized field operations.
ISOBUS Support: Seamlessly integrates with ISOBUS implements (Separate ISOBUS Modular needed）
Effortless Installation: Plug-and-play design with an intuitive interface for quick setup and hassle-free configuration.
Features
Modular Design
ISOBUS
Wireless Connectivity
Easy Installation
Remote Data Management
Autosteering Support
Implement Retrofit
Vehicle Data Monitoring
Manual Guidance with Ease and Precision
The FJD AG1 Guidance System integrates various positioning technologies (PPP, RTK, SBAS), offering precise location accuracy of up to 2.5cm for manual steering and assisting users in staying on the planned path. With its simplified configuration and an entry-level price, it significantly boosts efficiency while keeping costs in check, providing a streamlined experience.
Multiple Accuracy Solutions
Featuring multi-source satellite signals from RTK, PPP, and SBAS,
the AG1 offers positioning accuracy from decimeters at no cost to up to 2.5cm. Powered by built-in algorithms, the system works independently with a sub-meter positioning accuracy even in signal-challenging areas.
Extensive Functions
The AG1 Standard supports various guidance lines like straight, curved, or complex paths,slope climbing, and diagonal plowing. This makes it perfect for small fields,terraces, and hilly lands where autosteering may not be feasible.
Straight line, curve, A+ line, pivot and line group are available for diverse field shapes and operation needs.
Allow for the adjustment of guidance lines to enhance precision and enable the sharing of these lines between two tractors working in the same field.
Effortless Installation with Simplified Configuration
With only a guidance terminal and wirelessly connected GNSS receiver, you can effortlessly set it up and say goodbye to the hassle wiring connections for a simplified, intuitive experience.
FJD AG1 Guidance System Specifications
- Dimensions
162×64.5 mm
-
Frequency Band
GPS L1/L2/L5
BDS B1/B2/B3
GLONASS L1/L2
SBAS -
Operating Voltage
9 - 36V -
Operating Temperature
-20℃ - 70℃ -
Storage Temperature
-40℃ - 85℃ -
CPU
8-Core 2.0GHz
-
RAM+ROM
4GB + 64GB
-
Display
10.36 inch 2000*1200 FHD -
Bluetooth
Bluetooth support -
Wi-Fi
WiFi support -
Touch Screen
Capacitive 10-point touch G+G incell -
I/O
Type-C USB2.0, SIM+SIM or SIM+TF 3.5mm stereo headset -
Battery
Endurance: 8-10 hours -
Charger
input: AC 100-240V, 50-60 Hz; output: DC 5V 2A
AG1 FAQs
AG1 is a simplified version of AT2, offering manual guidance assistance. AT2, on the other hand, features full autosteering for hands-free operation. If you start with AG1, you can later upgrade it to AT2 by adding an autosteering kit.
Yes! You can purchase AG1 first and later add the AT2 upgrade package to unlock full autosteering capabilities. This allows you to transition from manual guidance to autonomous steering without replacing the entire system.
Yes! AG1 is ideal for:
- Small farms or hilly terrain, where precise manual guidance is needed
- Farmers new to navigation technology, looking for an affordable entry-level system
- Forage and spraying operations (30-50 cm accuracy) that do not require full autosteering
AG1 supports multiple guidance lines, including:
- Straight AB lines
- Curved AB lines
- A+ lines
- Circle/Contour paths
Yes! AG1 supports field boundary and guidance line creation via the Farm Management System (FMS). Supported file formats include:
- Shapefile, ISOXML, GeoJSON and so on
Yes! AG1 supports ISOBUS functionalities like:
- UT (Universal Terminal): For status monitoring
- TC-SC (Task Controller Section Control): For automated section control
- AUX-N (Auxiliary Control): For easier implement management
AG1 comes with a 2-year warranty, covering all hardware and software issues.
AG1 currently supports 29 languages, including English, Spanish, French, German, Turkish, Thai, Chinese, and more.
Yes! AG1 is designed to operate in a wide temperature range and withstand harsh farming environments.
